LOW TEMPERATURE CHILLERS
Low temp chillers often come with complexities that other chiller companies avoid – but not us. We understand and specialize in the many challenges of low temp chilling, including fluid viscosity, pump selection, oil flow parameters, and more. From outer space to deep ground freezing, we can deliver chilling to -40°F for your intense chilling needs. Whether you need calcium chloride chilled to -40°F or fuel chilled to -22°F, our vast experience with low-temp chillers delivers reliable engineered solutions for every process need.
We’re different because we take the time to understand your process and operating condition before making an equipment selection. It’s one of the reasons geotechnical giant, Moretrench Industrial, chose us to help them select a low-temp chiller for deep-freeze underground construction and excavation. We have the ingenuity and engineered solutions to solve even the most challenging low-temp chiller needs.
Low-temp chiller applications
Our robust line of engineered low-temp chiller solutions features custom-capable systems for industries and applications, such as:
Aerospace
Food processing
Energy
Chemical
Automotive
Product testing
Ice rinks
Do you need a low-temp chiller for an application not listed here? Reach out to us online, and we’ll engineer an affordable solution to meet your specifications.
Air-cooled and water-cooled low-temp chillers
With both air-cooled and water-cooled low-temp chillers, we’ll help you select the best option to suit your application and budget.
Air-cooled
Our air-cooled low-temp chiller line relies on ambient air to keep your processes cool. They’re cost-effective, energy- and space-efficient, and our packaged systems make them relatively quick and easy to install.
Water-cooled
Our water-cooled low-temp chiller line uses water from an external cooling tower to chill your processes. Companies often appreciate their extended life span, quiet operation, and energy-efficiency properties in these packaged systems.
Should you choose an air-cooled or water-cooled low-temp chiller? Contact our team for help determining the best solution for you.
low temp chillers we made for different companies
PWCTL70s6-T3-ZA
low temperature chiller
for Testing Station

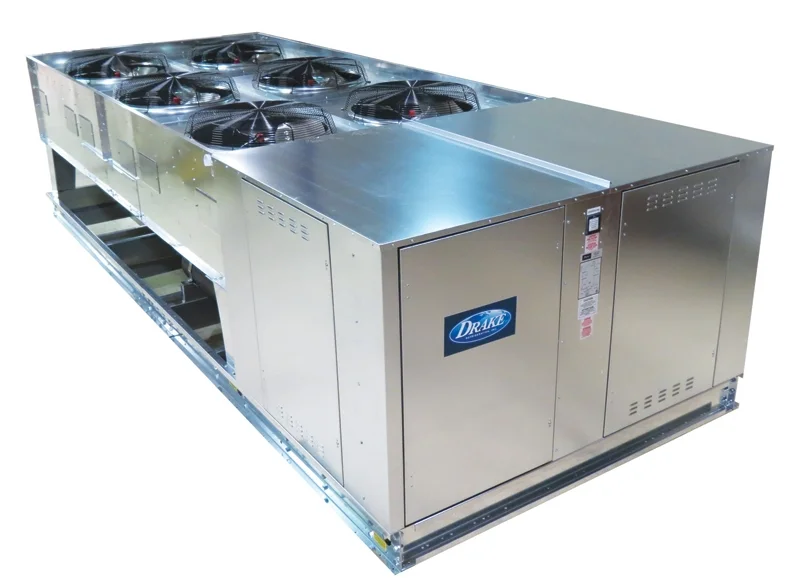

PACL1000D6-T4-SM
specialized low temperature chiller
PACL1200D6-t4-tmt
customized DEEP ground freezing chiller
used by Moretrench
Our low-temp chiller product line
Scroll
Air- and water-cooled
2 - 34 hp

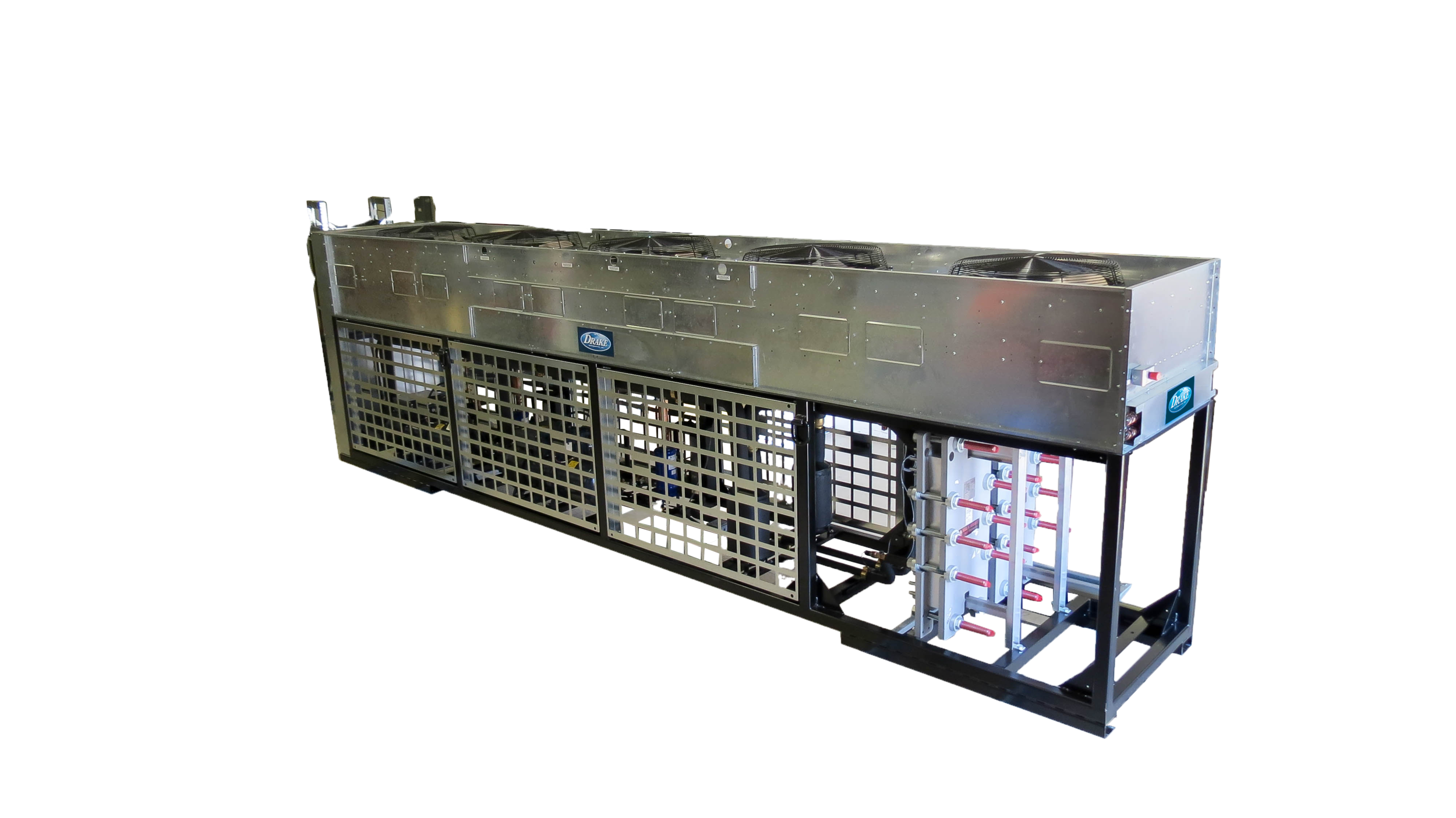

Semi-Hermetic
Air- and water-cooled
25 - 100 hp
Screw
Air- and water-cooled
38 - 214 hp
Remote condenser systems
For added convenience and versatility, our low-temp chillers with remote condenser systems allow the condenser and compressor to be installed in different areas.
Tank & pump packages
Choose from on-board or remote tank and pump packages with additional options, including polyethylene or stainless-steel tanks and 30 - 30,000-gallon capacity pumps.
Low-temp chiller options
Redundancy
Full capacity redundancy
Full electrical isolation
Dual or multi-circuit
Auto-changeover redundant pumps
Heat exchanger and tank
On-board or remote tank & pump packages
VFD (Variable Frequency Drive) available for pumps
Tank low-level indicator with alarm
Fluid level sight glass
Custom tank fittings
Low-temp design
Evaporators and heat exchangers sized for specific fluid for each application
Tight superheat control using electronic expansion valves (EEVs)
1" insulation for heat gain resistance
Low-temp chiller designs for fluid temperature pull-down from higher temperatures
Compressor protection with oil management capabilities
Compressor cooling with liquid injection and compressor fans
Pump selection specific to fluid type
Custom controls
MCS microcontroller upgrade available for precise process control and remote login access
Multiple units can have a central control
On-board or remote touchscreen options
Custom control programming available for precise low-temp chiller control
In case of an alarm, email and text alerts are available
Energy-efficiency options
EC condenser fan motors provide energy savings and stabilize refrigerant temperatures
Heat reclaim options for hot water loop
Floating head pressure provides for extremely efficient low-temp chillers in environments below 95°F ambient
Pump variable frequency drive (VFD) for minimal energy consumption
Additional low-temp chiller customization options
Digital flow meters
Corrosion resistance options
Phase monitor
Circuit breakers for electrical components
Low ambient protection
Fused disconnect
Our highly skilled engineering team can customize your low-temp chiller to incorporate even more options that improve efficiency and control for your specific application. Reach out to learn more about our robust custom-capable low-temp chiller lineup.
Customize your own Low Temp Chiller
Benefits of a Drake low-temp chiller
Rapid pull down
Low-temp applications often have large pull-downs, and many competitors only design for the final temperature considerations, which causes highly inefficient chiller operation. We’ve designed our systems to allow for quick and efficient pull-downs through the entire temperature range. Thanks to our electronic expansion valves (EEVs), our low-temp chillers maintain a constant superheat with no human interaction.
Oil management
Anyone with experience in low-temp chillers knows that oil return plagues the operation of even the simplest system. We take all the necessary measures to ensure full oil returns to the compressor without requiring a service technician. Our chillers ensure the proper amount of oil remains where it should: in the compressor. Oil management systems include an oil separator, oil filter, solenoid valve, ball valves, and oil pressure sensor. Oil is the lifeblood of a chiller, and with so much attention to detail in this area, it’s no wonder that our low-temp chillers have incredible longevity.
A vast array of cooling types
At lower temperatures, many standard antifreeze fluids become too viscous to pump. We design our low-temp chillers to meet your specific fluid. With us, you never have to de-rate chiller performance because we factor in fluid properties to ensure that our evaporators are sized to do the job well. It’s just one more way we engineer solutions for optimal performance and efficiency.
Signs of a reputable low-temp chiller company
If you’re researching other low-temp chiller companies, consider factors that will help ensure you get the best value and performance for your investment. To find a trusted partner, look for the following signs they’re reputable.
DO They have decades of specialized low-temp expertise?
Not all chiller companies have the unique expertise it takes to understand low-temp chillers. Ensure you partner with one who has decades of experience customizing high-performance chillers for specialized low-temp applications.
DO They have a high uptime rate?
The last thing you want is for your low-temp chiller to go down in the middle of a mission-critical process. When looking for a low-temp chiller company, be sure to inquire about their uptime rate. Look for one that’s as close to 100% as possible to ensure your low-temp chiller is designed for optimal performance.
DO They have the ingenuity to engineer solutions to meet your specifications?
Ensure the low-temp chiller company you choose has on-staff engineers skilled in customizing chillers to meet the specific demands of your application. From redundancy to energy-efficiency and controls, look for specialized options that will help you get the most control and performance from your chiller.
Do They offer affordable solutions that fit your budget?
Just because you need customizations to your low-temp chiller doesn’t mean you should pay a custom price. Ensure the low-temp chiller company you choose offers budget-friendly solutions that will help you achieve your goals and preserve your bottom line.
Do They offer short lead times?
When time is money, it’s essential to work with a low-temp chiller company that values quick turnarounds. Whether in-stock or customizable options, they should have the tools and resources to deliver your system as swiftly as possible.
DO They stand behind their chillers with reliable service and support?
Some low-temp chiller companies may think that customer service is complete once the system is delivered, but that’s a red flag. Instead, choose a company with reliable customer service and support teams that will be there for you before, during, and after installation.
Choose Drake To Meet Your Needs
We have four decades of industrial chiller expertise that set us apart from our less experienced competitors. As industry veterans, many companies have trusted us to deliver unsurpassed chiller performance and exceptional service. Our robust line of engineered solutions includes low-temp chillers for even the most rigorous cooling need.
40+ years of experience
Proven 99.4% uptime rate
Engineered solutions at an affordable price
Specialized understanding of low-temp chillers, including oil management
Proudly manufactured in the USA in Bensalem, PA
Short lead times with many in-stock and custom-ready low-temp chillers ready for quick shipment
Customer and technical support available
No matter how challenging your unique cooling need, our low-temp chiller line has what it takes to keep your processes going strong. Contact your trusted refrigeration wholesaler or request a quote for a low-temp chiller online or call (888) 289-7299.
